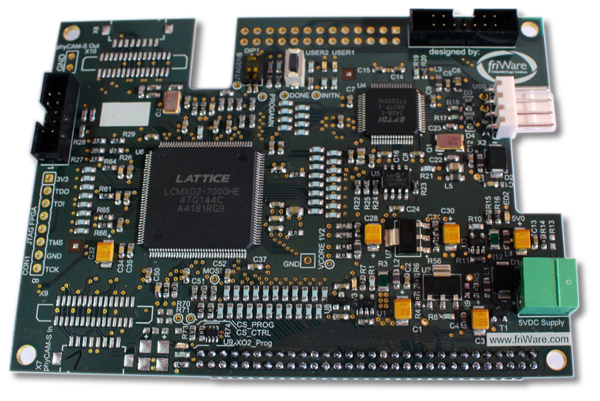

fri.IntellIO embedded FPGA Module

Expand your possibilities...deco_bar_h3.png

  • phyBOARD Wega (AM335x) and phyBOARD Mira (i.MX6) compatible
  • create highly customized peripherals
  • software independent functionality
  • high-speed realtime data processing and data acquisition
  • field programmable
  • compatible with Raspberry PI
  • LVDS / Camera in and out (phyCAM-S compatible)
  • several power supply options (via baseboard, USB or external power supply)
  • easy interfacing to embedded devices and PC's
  • icon_pdf.pngProduct data sheet

Applications deco_bar_h3.png

  • high performance intelligent IO-Expander
  • data acquisition
  • light control
  • motor control
  • measurement equipment
  • ...

Connectivity deco_bar_h3.png

USB, SPI, I2C, UART, GPIO, LVDS, ...

Ready to use reference-design for hard and software (available soon)

Several add on boards (e.g digital-/analog-IO will be available soon)

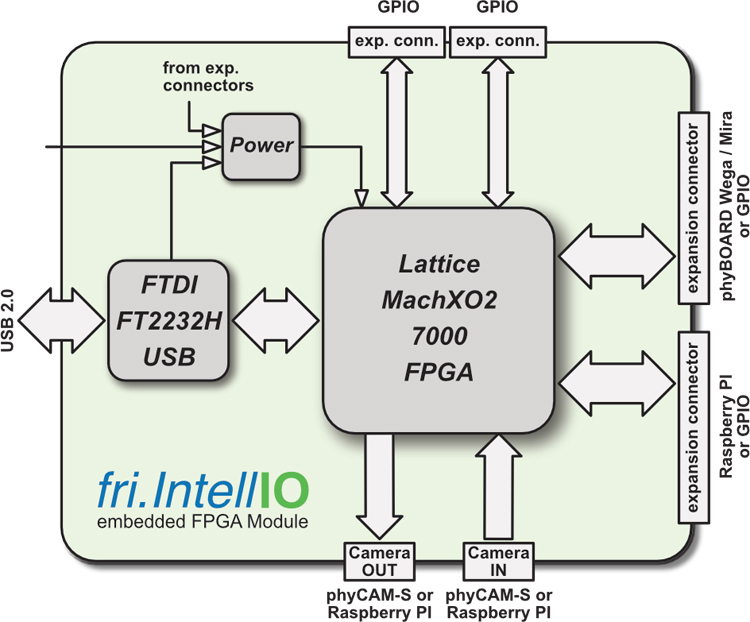

Block diagram deco_bar_h3.png
